Layout
Tessel arranges views with stacks: you put views in a row, a column or a pile, and nest stacks inside each other to build any layout.

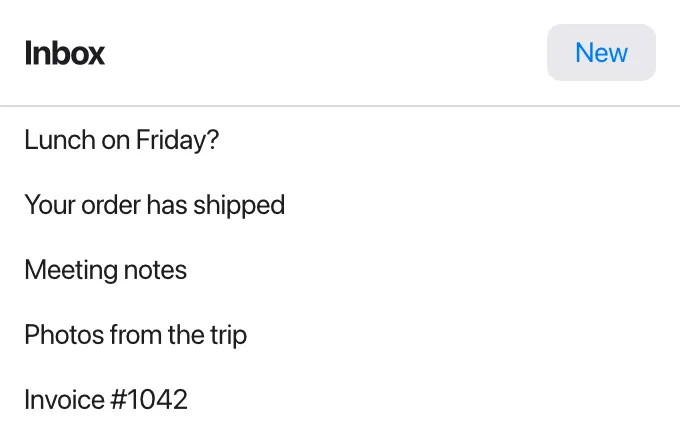

app Inbox(width: 340, height: 220) { state messages = ["Lunch on Friday?", "Your order has shipped", "Meeting notes", "Photos from the trip", "Invoice #1042", "Welcome to Tessel"]
VStack(spacing: 0) { HStack { Text("Inbox").font(size: 17, weight: .bold) Spacer() Button("New") { messages.insert("New message", at: 0) } } .padding(12) Divider() Scroll { VStack(spacing: 0, alignment: .leading) { for m in messages { Text(m).padding(horizontal: 12, vertical: 8) } } } }}
The rest of this page goes through each piece.
Stacks
Section titled “Stacks”| Stack | Arranges its children |
|---|---|
VStack { … } | top to bottom |
HStack { … } | left to right |
ZStack { … } | on top of each other, the first one at the back |
VStack { Text("Name") HStack { Text("First") Text("Last") } ZStack { Text("Behind").font(size: 30).color(.lightGray) Text("In front") }}A stack is just big enough for its children. By default it centers them: a
VStack centers each child horizontally, an HStack vertically. You can change
that with alignment:; see Alignment.
The body of an app or view works like a VStack too: its views go from
top to bottom, 8 points apart, centered.
Spacing
Section titled “Spacing”VStack and HStack put 8 points between their children. Pass spacing: to
change that:
VStack(spacing: 0) { Text("Tight") Text("lines")}HStack(spacing: 24) { Text("Far") Text("apart")}The spacing goes between children only, not before the first or after the
last. Hidden views (see .hidden) don’t
count.
Spacer
Section titled “Spacer”Spacer() is empty space that grows. In an HStack it grows sideways, in a
VStack up and down, pushing the other views apart:
HStack { Text("Left") Spacer() Text("Right")}With two or more spacers in the same stack, the free space is shared equally
between them. A Spacer with a fixed size is a handy way to make a gap of a
certain width:
HStack(spacing: 0) { Spacer().frame(width: 20) Text("Indented by 20 points")}Divider
Section titled “Divider”Divider() draws a thin line across its stack: a horizontal line in a
VStack, a vertical one in an HStack. It stretches to the stack’s full width
(or height), so it separates sections cleanly:
VStack(spacing: 0) { Text("Toolbar").padding(8) Divider() Text("Content").padding(8)}For a bar along the bottom of the window, with a line over it, you don’t
need a Divider and a stack: see The status bar.
Scroll
Section titled “Scroll”Scroll { … } shows content that may be taller than the space available, and
lets the user scroll it with the mouse wheel or trackpad, or by dragging the
scroll bar that shows at its right edge when there’s more than fits:
Scroll { VStack(alignment: .leading) { for i in 0..100 { Text("Line {i}") } }}A Scroll takes all the space it’s offered, and its content starts at the top
left. If you put several views directly inside a Scroll, it stacks them
downwards, 8 points apart, as a VStack with .leading alignment would.
Across, and both ways
Section titled “Across, and both ways”A Scroll scrolls up and down unless you say otherwise. Scroll(.horizontal)
scrolls across instead, and Scroll(.both) both ways, for content wider
than the view, like a sheet of cells or a large drawing:
Scroll(.horizontal) { HStack { for photo in photos { Image(photo).frame(height: 80) } }}The content gets all the width it asks for, and a scroll bar along the
bottom when it’s wider than the view. The wheel and trackpad move it the way
they turn; a mouse wheel turned down over a Scroll(.horizontal) moves it
across, unless there’s a scroll view around it that goes down: then that
one scrolls, so a strip of pictures in a page doesn’t stop the page.
Scrolling from code
Section titled “Scrolling from code”scrollTo(id) scrolls the scroll views around the view with that
.id until it shows. Use it to jump to a
search result, or to keep a log at its newest line:
app Log(width: 320, height: 240) { state lines: [String] = []
VStack { Button("Add") { lines.append("Line {lines.count + 1}") scrollTo(lines.count - 1) } Scroll { for (i, line) in lines.enumerated() { Text(line).id(i) } } }}-
align:says where the view ends up:.nearest(the default: no further than it takes to show it),.top,.centeror.bottom. In aScroll(.horizontal), they mean the leading edge, the middle and the trailing edge. -
It happens when the views are next laid out, so a view the same block adds, as above, is there to scroll to. If no view has the id then, nothing scrolls.
-
In a
LazyVStack, a row’s number is its id:scrollTo(5000)shows row 5000 even before it’s built. A view with that.idelsewhere in the window comes first. -
in:looks only inside the view with that.id. With two lazy lists in one window, a row number goes to the first one; give each list an.idand name the one you mean:HStack {Scroll {LazyVStack(count: files.count, rowHeight: 24) { i in Text(files[i]) }.id("files")}Scroll {LazyVStack(count: matches.count, rowHeight: 24) { i in Text(matches[i]) }.id("matches")}}scrollTo(80, in: "matches")then shows row 80 of the second list.in:also keeps a view’s.idfrom being mixed up with the same id elsewhere in the window.
Split views
Section titled “Split views”HSplit puts two views side by side with a line between them that the user
drags to share out the room; VSplit puts one above the other:
app Atlas(width: 800, height: 500) { state sidebar = 220.0
HSplit(size: sidebar) { LayerList() .frame(minWidth: 150) VSplit { MapView() AttributeTable() .frame(minHeight: 80) } }}size:is the first pane’s width (forVSplit, its height) in points. It keeps that size when the window is resized, and the second pane gets the rest: right for a sidebar. Bind it to astateto set it, or to save it with the app’s settings. Without it, the panes start out halves, and keep where the divider is dragged for as long as the app runs.- A pane’s
.frame(minWidth:)(forVSplit,minHeight:) is as small as the divider lets it get; without one, a pane is never less than 24 points. - For three panes, put a split view in a pane of another, as above.
- A split view takes all the space it’s offered. Its panes are its first two views.
A Grid lines views up in rows and columns. Each GridRow is a row, and
each view in it a cell; a column is as wide as its widest cell, so labels
and fields line up from row to row. It’s the way to lay out a form:
app Signup(width: 420, height: 260) { state name = "" state email = "" state plan = "Free"
Grid(spacing: 10) { GridRow { Text("Name").gridColumnAlignment(.trailing) TextField("", text: name) } GridRow { Text("Email address") TextField("", text: email) } Divider() GridRow { Text("Plan") Picker(selection: plan, style: .radio) { Text("Free").tag("Free") Text("Pro").tag("Pro") } } GridRow { Text("You can change your plan at any time.") .gridCellColumns(2) .color(.secondary) } } .padding(20)}spacing:is the room between columns, and between rows unlessrowSpacing:says otherwise (8 points each by default).alignment:lines up each cell in its row and column:.leading(the default) puts it at the left, centered from top to bottom. A cell with.gridColumnAlignment(.trailing)lines up its whole column, as the labels above..gridCellColumns(2)makes a cell take two columns (or more).- A view in the grid that isn’t in a
GridRow, like theDividerabove, is a row of its own, as wide as the grid. - Columns with a flexible view in them, such as a text field, share the room the others leave, so a grid in a wide window has wide fields.
- A row can come from a view of your own:
view Field(…) { GridRow { … } }makes one row of the grid it’s in. Rows fromforandifwork too. A modifier on the view, like.disabled(true), applies to its rows, and a view that comes out empty takes no room. - Outside a
Grid, aGridRowis laid out like anHStack.
Turning and scaling
Section titled “Turning and scaling”.rotation(degrees) turns a view clockwise around its middle, and
.scale(…) makes it larger or smaller. Unlike .offset,
they change the layout: the view takes the room of the box around it as
it now shows, and the views around it move:
app Labels(width: 300, height: 220) { HStack(spacing: 12) { Text("Normal") Text("Turned").rotation(-90) Text("Big").scale(1.6) Text("Wide").scale(x: 2, y: 1) }}The text turned by a quarter takes a column as tall as it was wide. Clicks go by the view’s new shape, and what’s in it turns and grows with it.
Padding
Section titled “Padding”.padding adds space around a view, inside its background and border. You
can pad every edge, the two axes, or single edges:

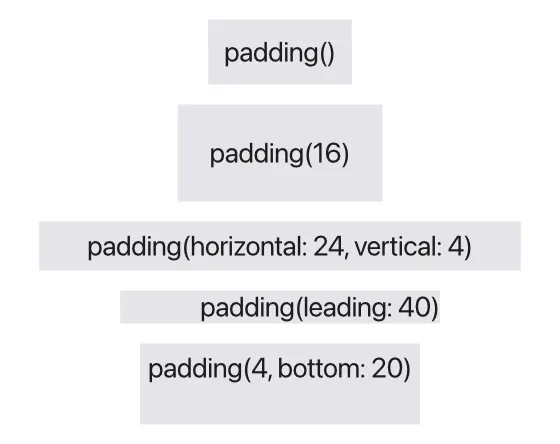

Text("padding()").padding().background(.lightGray)Text("padding(16)").padding(16).background(.lightGray)Text("padding(horizontal: 24, vertical: 4)") .padding(horizontal: 24, vertical: 4) .background(.lightGray)Text("padding(leading: 40)").padding(leading: 40).background(.lightGray)Text("padding(4, bottom: 20)").padding(4, bottom: 20).background(.lightGray)
The rules:
.padding()with nothing in the parentheses pads every edge by 8 points..padding(16)pads every edge by 16.horizontal:sets the leading and trailing edges;vertical:sets the top and bottom.top:,leading:,bottom:andtrailing:set one edge each. (Leading is the left edge, trailing the right.)- When you name some edges, the edges you don’t name get 0, unless you also
give a first amount for them:
.padding(4, bottom: 20)is 4 everywhere except the bottom. The most specific value wins. - Calling
.paddingmore than once adds the amounts together.
Fixed sizes with .frame
Section titled “Fixed sizes with .frame”.frame(width:height:) gives a view an exact size:
Text("Fixed").frame(width: 120, height: 40).background(.yellow)The view’s content is centered inside the frame (see Alignment to place it elsewhere). Text that doesn’t fit in the width wraps onto more lines. You can give just one of the two; the other then comes from the content as usual.
.frame also takes minWidth:, maxWidth:, minHeight: and maxHeight:,
for views that grow or shrink within limits. Those are covered in
Alignment.
How sizes are decided
Section titled “How sizes are decided”When Tessel lays out a window, each view gets offered some space and picks its size. Knowing the rules helps when a layout doesn’t come out as you expect.
Most views are exactly as big as their content. A Text is as big as its
text (and wraps onto more lines when it’s offered less width than it needs), a
Button fits its label, an Icon follows the font size, and a stack fits its
children plus spacing.
Some views are flexible and take the space they’re offered:
| View | Grows |
|---|---|
Spacer() | along its stack (sideways in an HStack, downward in a VStack) |
TextField | in width |
Divider() | across its stack |
Scroll, CodeEditor, TabView | in both directions |
any view with .frame(maxWidth:) or .frame(maxHeight:) | in that direction, up to the maximum |
A fixed .frame(width:) or .frame(height:) turns growing off in that
direction.
A stack with something flexible inside becomes flexible too. An HStack
containing a Spacer stretches across the whole width it’s offered, which is
how Text("Left"), Spacer(), Text("Right") reaches both edges.
Stacks share out their space in two rounds: first every fixed-size child gets what it needs, then the flexible children split what’s left equally. If there are no flexible children, the children are packed together in the middle of the stack.
The window centers its content. The app’s body is placed in the middle of
the window, at its natural size, unless something flexible inside it makes it
fill the window. That’s why a simple app floats in the center, and one with a
Spacer, Scroll or TabView in its outer stack fills the window edge to
edge.
To see what size each view actually got, run your app with the dump script
command; see Testing your UI.
