Icons, SVG and images

Tessel has three views for pictures:

  • Icon(.name) shows one of the built-in icons;
  • Svg("<svg …>") draws SVG markup written in your program;
  • Image("file.svg") draws an SVG file.

Built-in icons

Section titled “Built-in icons”
HStack(spacing: 12) {
    Icon(.folder)
    Icon(.fileCode).color(.blue)
    Icon(.play).color(.green)
    Icon(.stop).color(.red)
    Icon(.settings).font(size: 24)
    Icon(.warning).font(size: 24).color(.orange)
    Icon(.heart).font(size: 32).color(.pink)
}
HStack(spacing: 6) {
    Icon(.circleCheck).color(.green)
    Text("All tests passed")
}

A row of icons in different colors and sizes: folder, code file, play, stop, settings, warning and heart, and below it a green check icon next to the text "All tests passed"

An icon behaves like a piece of text:

  • Its size follows the font size. An icon is a square a little larger than the current font size (16 points at the default 14), so it lines up with the text next to it. Change it with .font(size:).
  • Its color follows .color. Icons are drawn in the current text color, and like text they inherit .font and .color from the stack around them.

The icons come from the Lucide set (ISC license). See the icon reference for every name, such as .folder, .trash, .search, .chevronRight and .settings.

Icon names are values of the built-in IconName type, so you can store them in state, pass them to your own views, or choose one with if:

view ToolButton(icon: IconName, label: String, action: fn()) {
    HStack(spacing: 5) {
        Icon(icon)
        Text(label)
    }
    .padding(6)
    .onTap { action() }
}


app Player(width: 300, height: 120) {
    state liked = false


    Icon(if liked { .heart } else { .star }).color(.pink)
    ToolButton(icon: .heart, label: "Like") { liked = !liked }
}

To make an icon clickable, add .onTap, and .hoverBackground so it looks clickable.

Your own SVG with Svg

Section titled “Your own SVG with Svg”

Svg draws SVG markup that you write as a string. Since Tessel strings use double quotes, use single quotes for the SVG’s attributes:

Svg("<svg xmlns='http://www.w3.org/2000/svg' width='40' height='40'><circle cx='20' cy='20' r='18' fill='#34c759'/><path d='M12 20l6 6 10-12' stroke='white' stroke-width='4' fill='none'/></svg>")


Svg("<svg xmlns='http://www.w3.org/2000/svg' viewBox='0 0 40 40'><rect x='4' y='4' width='32' height='32' rx='8' fill='none' stroke='currentColor' stroke-width='4'/></svg>")
    .color(.purple)
    .frame(width: 60, height: 60)

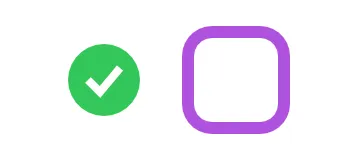

A green circle with a white check mark, and a larger purple rounded square outline

  • Size. An SVG is drawn at the size it declares with its width and height attributes (or its viewBox, if it has no width and height). Give it a .frame(width:height:) to scale it; it keeps its proportions and is centered in the frame.
  • Color. Wherever the SVG says currentColor, Tessel uses the view’s current .color, just like it does for icons. That’s how the second shape above turns purple.
  • If the markup isn’t valid SVG, nothing is drawn.

Picture files with Image

Section titled “Picture files with Image”

Image shows a picture from a file: an SVG, a PNG or a JPEG.

Image("assets/logo.svg").frame(width: 80)
Image("assets/photo.jpg")
Image("assets/photo.jpg").frame(height: 100)

The path is relative to the folder the app is started from (the current folder), not to the source file.

  • SVG files work like Svg: they have their own size, scale with .frame, and use currentColor.
  • PNG and JPEG files are as large as their pixels, one point for each, and made smaller when there’s less room than that. A .frame(width:) or .frame(height:) scales the picture to fit, keeping its proportions; with both, it’s centered in the frame. Transparent parts of a PNG show what’s behind it.

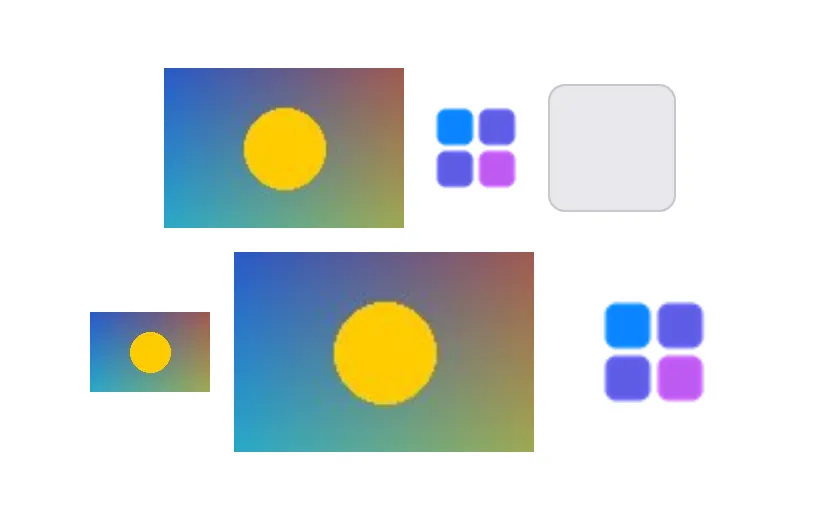

Three pictures at their own size (a photo, a small logo and a gray placeholder box), and below them the same photo and logo scaled by frames

When the file can’t be read, or it’s another kind of file, Image shows a gray placeholder box instead (64 × 64 points unless you give it a frame), like the third one above. A picture is read again when its file changes.
