Your first app

In this tutorial you build a todo list: you can add items, tick them off, see how many are left, and filter the list. Along the way you meet most of what makes Tessel apps work: structs, state, controls, loops, your own views, bindings and enums.

This is where you’ll end up:

You need a working tessel command; see Installation. The finished program is also in the Tessel repository as examples/todos.

Set up

A Tessel program is a folder of .tsl files. Make a folder called todos with an empty file main.tsl in it. You can edit it in any text editor, in the Tessel IDE (run tessel ide todos), or in VS Code.

After each step, check your program and run it:

tessel check todos
tessel run todos

tessel check only looks for mistakes, which is quick. tessel run compiles the program and opens its window. Close the window to get back to the terminal.

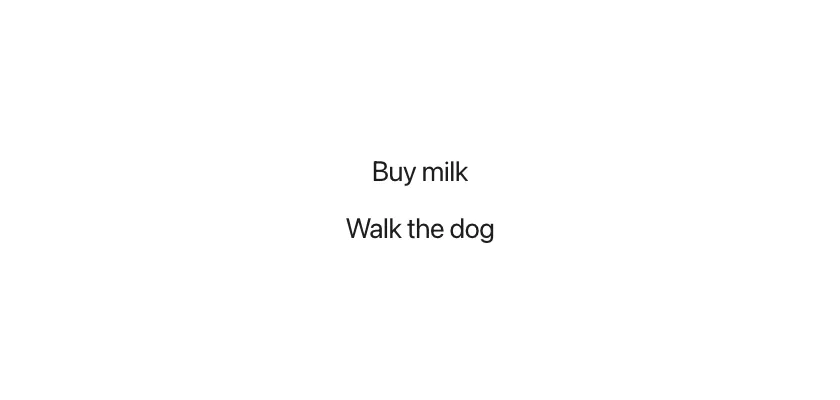

Step 1: a struct and a list

A todo has a title and is either done or not. Describe that with a struct, then show a list of todos in an app:

struct Todo {
    title: String
    done: Bool = false
}

app Todos(width: 420, height: 560) {
    state todos = [
        Todo(title: "Buy milk"),
        Todo(title: "Walk the dog", done: true),
    ]

    VStack(spacing: 12) {
        for todo in todos {
            Text(todo.title)
        }
    }
    .padding(16)
}

Here is what’s going on:

• struct Todo declares a new type with two fields. done has a default value, so you can leave it out: Todo(title: "Buy milk") makes a todo that isn’t done yet.
• app Todos(width: 420, height: 560) is the program’s entry point. It opens a window of that size, and its body describes what’s in the window.
• state todos = [...] is a list of todos that belongs to the app. Its type, [Todo] (a list of Todo), is worked out from the value.
• VStack stacks views vertically, 12 points apart. for inside a view makes one Text per todo.
• .padding(16) is a modifier: it adds space around the stack.

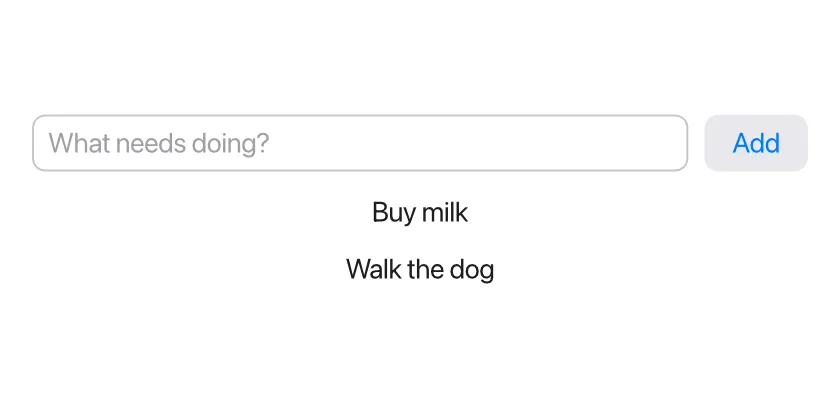

Step 2: adding todos

Now let the user type in new todos. Start the list empty and add a text field and a button:

struct Todo {
    title: String
    done: Bool = false
}

app Todos(width: 420, height: 560) {
    state todos: [Todo] = []
    state draft = ""

    VStack(spacing: 12) {
        HStack(spacing: 8) {
            TextField("What needs doing?", text: draft)
            Button("Add") { add() }
        }

        for todo in todos {
            Text(todo.title)
        }
    }
    .padding(16)

    fn add() {
        if draft != "" {
            todos.append(Todo(title: draft))
            draft = ""
        }
    }
}

• An empty list has no items to guess its type from, so you write the type: state todos: [Todo] = [].
• state draft = "" holds the text being typed.
• TextField("What needs doing?", text: draft) shows a text field. Its text: parameter is a binding: the field doesn’t get a copy of draft, it reads and writes draft itself. As you type, draft changes.
• Button("Add") { add() } runs the block when it’s clicked. The block after the call is the button’s action.
• fn add() is a function inside the app, so it can change the app’s state. It appends a new todo and clears the text field (setting draft to "" empties the field, because the field shows draft).

Every time an action changes state, Tessel rebuilds the view and redraws what changed. That is why the new todo appears without you writing any code to show it.

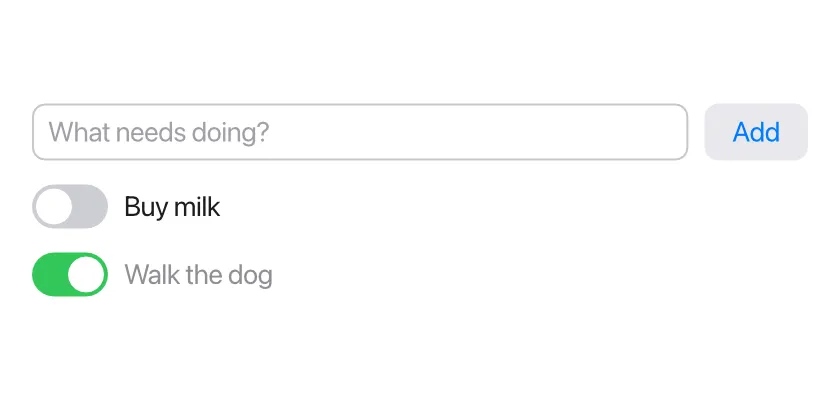

Step 3: a view of your own

Each todo should get a toggle to mark it done. You could write that inside the for loop, but it’s neater as a separate, reusable view. Add this at the end of the file:

view TodoRow(todo: bind Todo) {
    HStack(spacing: 8) {
        Toggle(isOn: todo.done)
        Text(todo.title)
            .color(if todo.done { .gray } else { .primary })
        Spacer()
    }
}

and use it in the loop, instead of Text(todo.title):

        for todo in todos {
            TodoRow(todo: todo)
        }

• view TodoRow(todo: bind Todo) declares a view with one parameter. The word bind means the row doesn’t get a copy of the todo; it gets access to the caller’s todo, so it can change it.
• Toggle(isOn: todo.done) binds the toggle to the done field. Clicking the toggle changes the todo inside the app’s todos list.
• .color(if todo.done { .gray } else { .primary }) greys out finished todos. if is an expression here: it picks one of two colors.
• Spacer() takes up the rest of the row, which pushes the toggle and text to the left.

Notice that the call TodoRow(todo: todo) has no special marker for passing a binding. Because the loop runs over a state list, each todo is a place that can be changed, and that’s all a bind parameter needs. If you pass something that can’t be changed, tessel check tells you. For example, TodoRow(todo: Todo(title: "Hi")) gives:

error: `TodoRow`'s `todo:` needs something it can change
  --> todos/main.tsl:17:27
   |
17 |             TodoRow(todo: Todo(title: "Hi"))
   |                           ^^^^^^^^^^^^^^^^^ this is a value, not a variable
   |
   = help: pass a `state` or `var`, or a field of one

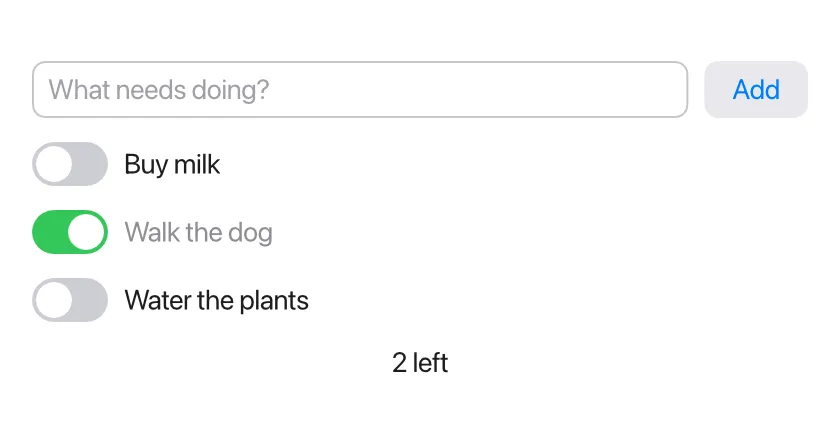

Step 4: counting what’s left

Show how many todos are still to do. Add a function to the app that counts them:

    fn remaining() -> Int {
        todos.filter { t in !t.done }.count
    }

and a Text at the bottom of the VStack that uses it:

        Text("{remaining()} left")

• -> Int says the function returns an Int. The last expression in its body is the result, so there’s no need for return.
• todos.filter { t in !t.done } makes a new list with only the todos that aren’t done. The part in braces is a closure: a small function that takes t and returns whether to keep it. ! means “not”.
• "{remaining()} left" puts a value into text. Anything inside { } in a string is evaluated and inserted.

Because the text calls remaining() each time the view is rebuilt, the count is always right: tick a todo, and it goes down.

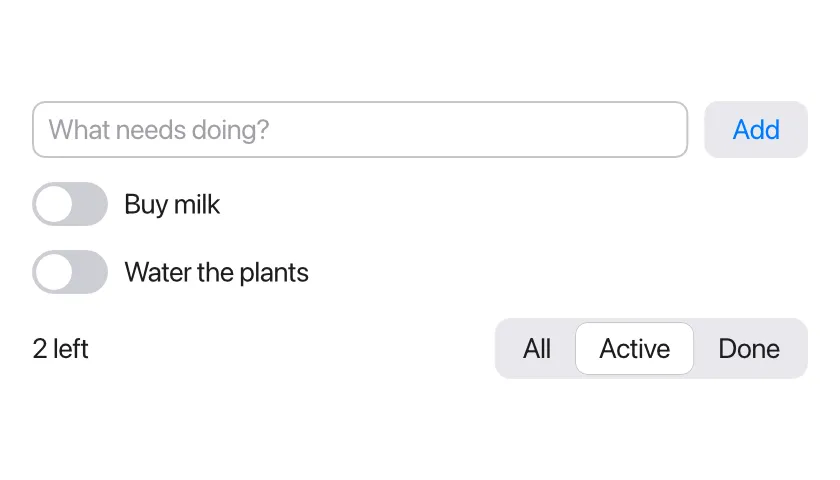

Step 5: filtering with an enum

Last, let the user choose to see all todos, only the active ones, or only the done ones. The three choices are an enum:

enum Filter { all, active, done }

Store the current choice in the app, as state filter = Filter.all, and replace the Text from step 4 with a row that also has a Picker:

        HStack {
            Text("{remaining()} left")
            Spacer()
            Picker(selection: filter) {
                Text("All").tag(.all)
                Text("Active").tag(.active)
                Text("Done").tag(.done)
            }
        }

The picker shows its options side by side. Each option has a .tag: the value that filter gets when you click it. Since Tessel knows filter is a Filter, you can write .all instead of Filter.all.

To use the filter, add a function that decides whether to show a todo, and wrap the row in an if:

        for todo in todos {
            if shows(todo) {
                TodoRow(todo: todo)
            }
        }

    fn shows(todo: Todo) -> Bool {
        match filter {
            .all -> true
            .active -> !todo.done
            .done -> todo.done
        }
    }

match picks the branch for the current value of filter. It must cover every case of the enum; if you add a fourth filter later, tessel check reminds you to handle it here.

The whole program

Here is the finished app, the same as examples/todos in the repository:

// A todo list: structs, lists, enums, loops, bindings and custom views.

struct Todo {
    title: String
    done: Bool = false
}

enum Filter { all, active, done }

app Todos(width: 420, height: 560) {
    state todos: [Todo] = []
    state draft = ""
    state filter = Filter.all

    VStack(spacing: 12) {
        HStack(spacing: 8) {
            TextField("What needs doing?", text: draft)
            Button("Add") { add() }
        }

        for todo in todos {
            if shows(todo) {
                TodoRow(todo: todo)
            }
        }

        HStack {
            Text("{remaining()} left")
            Spacer()
            Picker(selection: filter) {
                Text("All").tag(.all)
                Text("Active").tag(.active)
                Text("Done").tag(.done)
            }
        }
    }
    .padding(16)

    fn add() {
        if draft != "" {
            todos.append(Todo(title: draft))
            draft = ""
        }
    }

    fn shows(todo: Todo) -> Bool {
        match filter {
            .all -> true
            .active -> !todo.done
            .done -> todo.done
        }
    }

    fn remaining() -> Int {
        todos.filter { t in !t.done }.count
    }
}

// A reusable view. `bind` means the row edits the caller's Todo in place.
view TodoRow(todo: bind Todo) {
    HStack(spacing: 8) {
        Toggle(isOn: todo.done)
        Text(todo.title)
            .color(if todo.done { .gray } else { .primary })
        Spacer()
    }
}

Make it an app

tessel run builds a temporary program each time. To get an app you can keep, use tessel build:

tessel build todos -o todos-app --bundle

On macOS this makes Todos.app, named after your app, which you can double-click or move to your Applications folder. On Windows it makes todos-app.exe, which you can double-click too. See Command line for the details.

Note

Here -o just makes the name explicit. Without it, tessel build todos would name the executable after the folder, but since a folder called todos is already there, it uses todos-app instead.

Where to go next

• The language pages explain each feature in more depth, starting with the basics.
• State and bindings covers state and bind fully.
• Controls lists the other built-in controls.
• Lists and identity explains .id, which keeps each row’s own state attached to the right item when a list is reordered.
