3D scenes

A Canvas draws flat shapes. A Scene3D shows solid ones: you say what’s in the scene and where it’s seen from, and the graphics card draws it, with nearer things in front of farther ones, lit and shaded.

A first scene

A Scene3D is a view with a block. The block gets a Scene value, usually called s, and says what’s in the scene by calling its methods:

app Shapes(title: "Shapes", width: 420, height: 300) {
    Scene3D { s in
        s.camera(x: 4, y: 3.5, z: 6)
        s.plane(width: 5, depth: 5, color: .rgb(225, 228, 235))
        s.box(color: .red, x: -1.5, y: 0.5)
        s.sphere(radius: 0.6, color: .blue, y: 0.6)
        s.cylinder(radius: 0.4, height: 1.2, color: .green, x: 1.5, y: 0.6)
        s.cone(radius: 0.5, height: 1, color: .orange, y: 0.5, z: -1.6)
    }
}

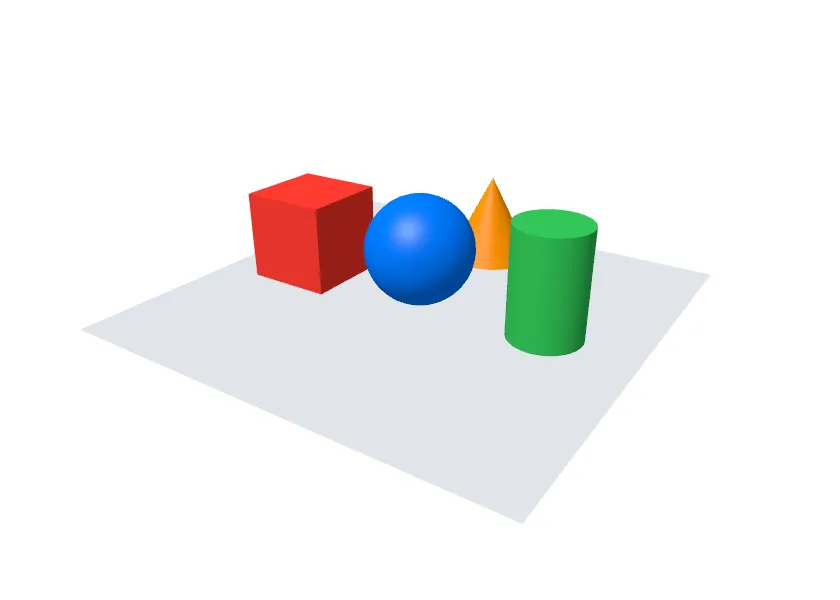

A red box, a blue ball, a green cylinder and an orange cone standing on a gray sheet, seen from above and to the right

Places and sizes are in the scene’s own units: what a unit is (a meter, a millimeter) is up to you. x goes to the right, y up, and z towards you.
A shape’s x:, y: and z: say where its middle is, and are 0 when left out. The box above is 1 high, so with y: 0.5 it stands on the sheet.
Like a canvas, a scene takes all the space it’s offered; .frame gives it a size. It has no background of its own: what’s under the view shows around the shapes, so .background(…) works, and so does s.background(…).
The block runs when the window is drawn, so it reads state like any view, and the scene follows it. It shouldn’t change state.

Shapes

Method
`s.box(width:, height:, depth:, color:)`	A box. Each size is 1 when left out.
`s.sphere(radius:, color:)`	A ball.
`s.cylinder(radius:, height:, color:)`	A cylinder, standing up.
`s.cone(radius:, height:, color:)`	A cone, its point up.
`s.plane(width:, depth:, color:)`	A flat sheet, lying down.
`s.line(x1, y1, z1, x2, y2, z2, color:)`	A thin line between two points.
`s.lines(points, color:, closed:)`	A line through many points, given as `x, y, z, x, y, z, …`.
`s.label(text, x:, y:, z:, size:, color:)`	Text at a point of the scene. It faces you and keeps its size wherever the camera is, and shows over the shapes.

Each shape also takes x:, y: and z:, and opacity: (see Seeing through shapes). See Scene for every parameter and its default.

The camera

Without a camera, a scene is seen from (3, 2.5, 4), looking at the middle. s.camera puts it somewhere else, and says what it looks at:

s.camera(x: 0, y: 10, z: 0.1)                  // from above
s.camera(x: 4, y: 1.5, z: 0, lookAtY: 1.5)     // from the right, level with y = 1.5

For looking around something, s.orbit is easier: the camera is at a distance from a point, turned yaw around it and raised pitch above it (both angles in radians, like every angle in Tessel). With the angles in state, the mouse can move it:

app Look(title: "Look around", width: 420, height: 300) {
    state yaw = 0.6
    state pitch = 0.4
    state distance = 7.0

    Scene3D { s in
        s.orbit(distance: distance, yaw: yaw, pitch: pitch)
        s.box(color: .purple)
        s.line(0, 0, 0, 2, 0, 0, color: .red)
        s.line(0, 0, 0, 0, 2, 0, color: .green)
        s.line(0, 0, 0, 0, 0, 2, color: .blue)
        s.label("x", x: 2.2, color: .red)
        s.label("y", y: 2.2, color: .green)
        s.label("z", z: 2.2, color: .blue)
    }
    .onPointer { e in
        if e.kind == .drag {
            yaw -= e.dx * 0.01
            pitch += e.dy * 0.01
        }
        if e.kind == .scroll {
            distance = (distance - e.dy * 0.05).clamped(min: 2, max: 30)
        }
    }
}

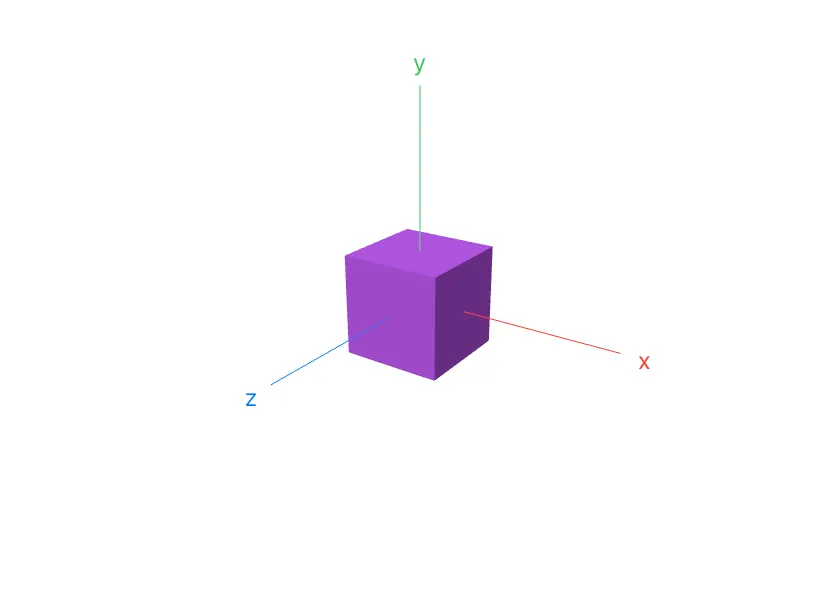

A purple box with a red, a green and a blue line leaving its middle along x, y and z, each with its letter at the end

Things twice as far look half as large. fieldOfView: (on both methods) is the angle seen from the top of the view to the bottom, 45 degrees unless you say otherwise: smaller looks through a telescope, larger through a wide lens.

Moving, turning and sizing

s.translate, s.rotateX, s.rotateY, s.rotateZ and s.scale change where everything after them goes, as a canvas’s do. s.save() remembers that, and s.restore() goes back to it. A turn is around the axis it’s named after, through the point everything has been moved to: move first, then turn, and a part turns in its own place.

app Arm(title: "Arm", width: 420, height: 300) {
    state bend = 0.7

    VStack {
        Scene3D { s in
            s.camera(x: 0.5, y: 2, z: 7, lookAtY: 1.2)
            s.cylinder(radius: 0.6, height: 0.2, color: .gray, y: 0.1)

            s.translate(0, 0.2, 0)
            s.box(width: 0.3, height: 1.5, depth: 0.3, color: .blue, y: 0.75)

            // The second part hangs from the end of the first, and turns there.
            s.translate(0, 1.5, 0)
            s.rotateZ(-bend)
            s.sphere(radius: 0.22, color: .orange)
            s.box(width: 0.25, height: 1.2, depth: 0.25, color: .blue, y: 0.6)
        }
        Slider(value: bend, from: 0, to: 2)
            .padding(12)
    }
}

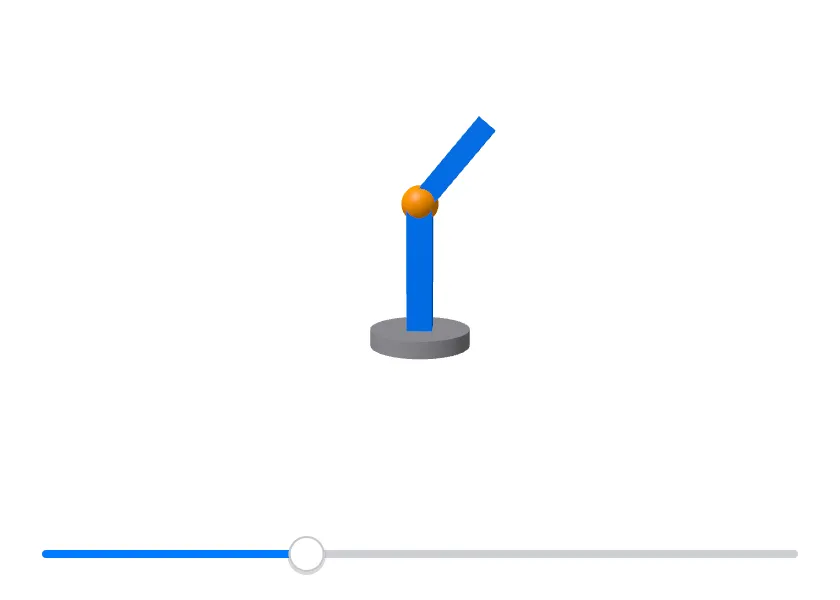

A blue arm standing on a gray base, bent to the right at an orange joint, over a slider

Light

A scene with no light of its own is lit from over your left shoulder, wherever the camera is. s.light adds a light instead: x:, y: and z: are the direction it comes from. It’s as far as the sun, so every shape is lit from the same side, and nothing casts a shadow. A scene can have up to 4.

s.light(x: 2, y: 3, z: 4)                                           // white, from the upper right in front
s.light(x: -3, y: 1, z: -2, color: .rgb(255, 200, 150), strength: 0.5)   // a weaker, warm one from behind
s.ambient(0.15)

s.ambient(amount) is the light there is everywhere, which the sides turned away from every light still get: 0.3 unless you say otherwise, from 0 (black shadows) to 1 (no shading at all).

Surfaces

s.surface is a sheet over a grid, for a terrain or a function of two numbers. heights holds the height at each point of the grid, row by row from the back, and columns says how many there are in a row. With colors:, each point is colored by its height, from the first color (the lowest) to the last:

app Ripple(title: "Ripple", width: 420, height: 300) {
    state heights: [Float] = []

    Scene3D(redraw: heights.count) { s in
        s.camera(x: 3, y: 2.6, z: 4)
        s.surface(heights: heights, columns: 60, width: 4, depth: 4, colors: [.blue, .green, .yellow, .red])
    }
    .onAppear {
        for j in 0..60 {
            for i in 0..60 {
                let x = Float(i) / 59 * 12 - 6
                let z = Float(j) / 59 * 12 - 6
                let d = sqrt(x * x + z * z)
                heights.append(cos(d * 1.5) * 0.4 / (1 + d * 0.3))
            }
        }
    }
}

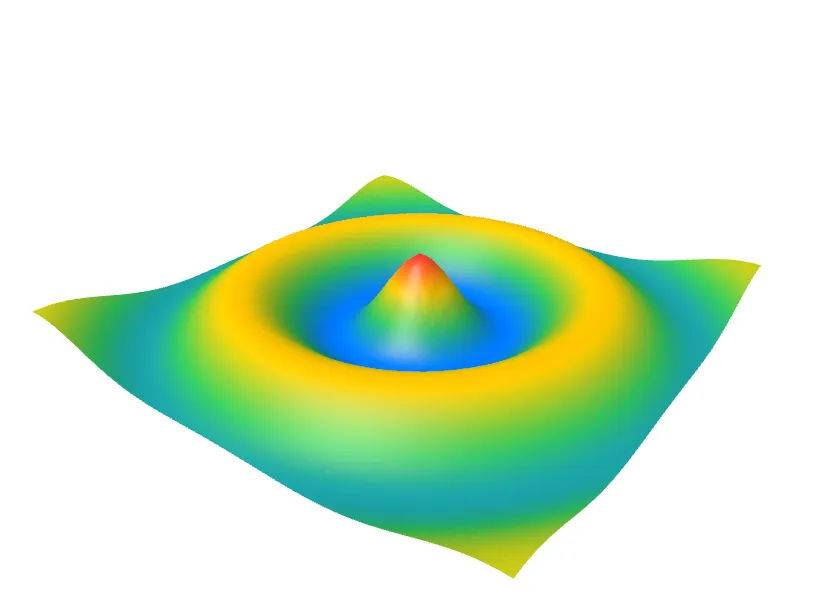

A sheet with a ripple spreading from its middle, blue in the hollows through green and yellow to red at the top of the middle

The heights here never change, so redraw: keeps the picture: see When a scene is drawn.

Shapes of your own

s.mesh takes triangles. vertices is the points, x, y, z for each, and triangles says which three points make each triangle, counting points from 0:

app Pyramid(title: "Pyramid", width: 420, height: 300) {
    Scene3D { s in
        s.camera(x: 2.5, y: 2, z: 3.5, lookAtY: 0.5)
        s.light(x: 2, y: 3, z: 4)
        s.light(x: -3, y: 1, z: -2, color: .rgb(255, 200, 150), strength: 0.5)
        s.ambient(0.15)
        s.background(.rgb(24, 26, 32))
        s.mesh(
            vertices: [
                -1, 0, 1,    1, 0, 1,    1, 0, -1,    -1, 0, -1,    // the base's corners
                0, 1.5, 0,                                            // the top
            ],
            triangles: [0, 1, 4,  1, 2, 4,  2, 3, 4,  3, 0, 4,  0, 2, 1,  0, 3, 2],
            color: .yellow
        )
    }
}

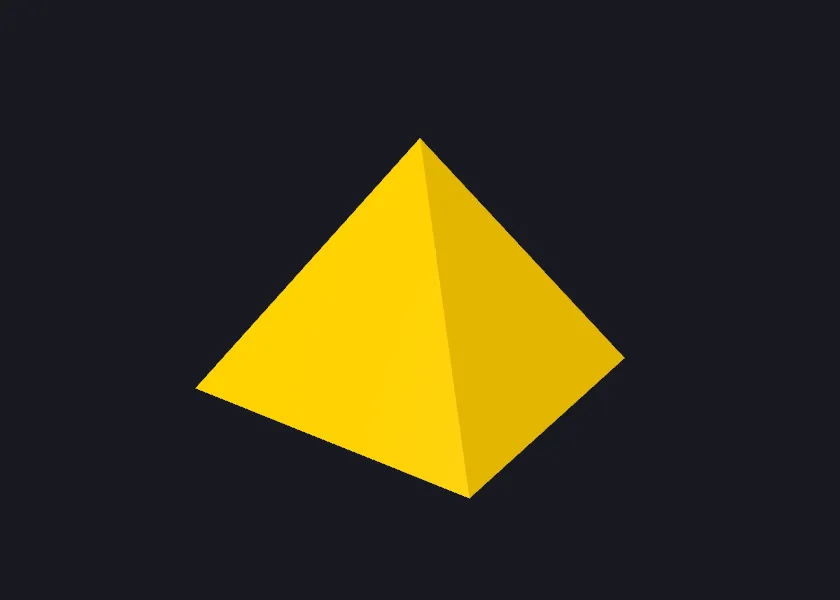

A yellow pyramid on a dark background, its right side in shade

Without triangles:, every three points are a triangle.
colors: gives each point a color of its own, in the order of the points, and each triangle goes smoothly from one of its points’ colors to the others’: that’s how a value known at every point (a temperature, a pressure) is shown. A point without a color takes color:.
Both sides of a triangle show, so the order of its points doesn’t matter.
Each triangle is flat, with a sharp edge to the next. smooth: true shades across the edges between triangles that share points, for a curved thing made of many small triangles.
A triangle that names a point that isn’t there leaves the whole mesh out.

Seeing through shapes

opacity: makes a shape see-through: 1 (the default) hides what’s behind it, 0.5 lets half of it show, and 0 shows nothing of the shape. A color that’s see-through itself, like .rgba(0, 120, 255, 0.4), does the same.

app Dam(title: "Dam", width: 420, height: 300) {
    Scene3D { s in
        s.camera(x: 5, y: 3, z: 7, lookAtY: 0.8)

        // The core, and the water behind the dam.
        s.box(width: 0.6, height: 1.8, depth: 4, color: .orange, y: 0.9)
        s.box(width: 3, height: 1.5, depth: 4, color: .blue, x: -3, y: 0.75, opacity: 0.35)

        // The shell: a section drawn along the dam, see-through, and
        // colored from wet at the bottom to dry at the top.
        let wet: Color = .rgb(60, 110, 200)
        let dry: Color = .rgb(190, 160, 110)
        s.mesh(
            vertices: [
                -3, 0, 2,    3, 0, 2,    0.5, 2, 2,    -0.5, 2, 2,
                -3, 0, -2,   3, 0, -2,   0.5, 2, -2,   -0.5, 2, -2,
            ],
            triangles: [
                0, 1, 2,  0, 2, 3,    4, 6, 5,  4, 7, 6,    // the ends
                0, 3, 7,  0, 7, 4,    1, 5, 6,  1, 6, 2,    // the slopes
                3, 2, 6,  3, 6, 7,                          // the top
            ],
            colors: [wet, wet, dry, dry, wet, wet, dry, dry],
            opacity: 0.45
        )
    }
}

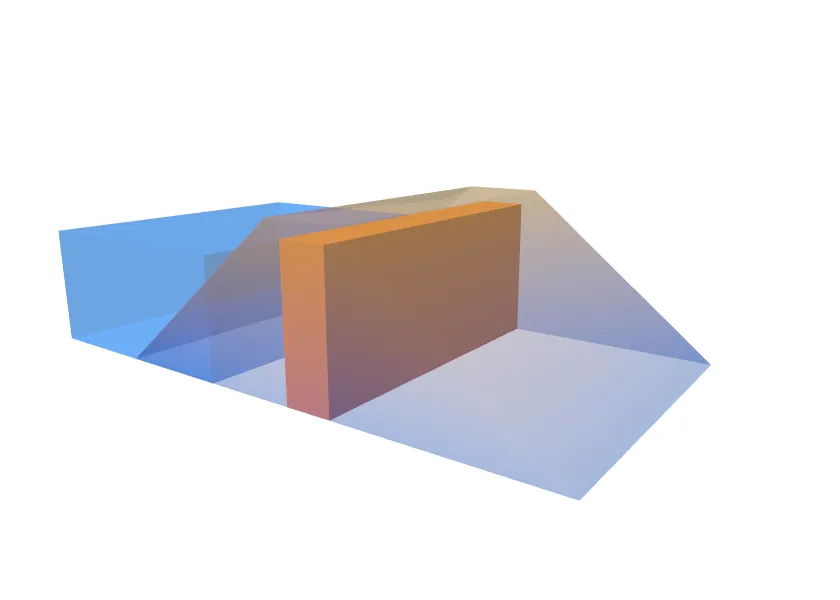

A see-through dam, blue at the bottom and sand-colored at the top, with a solid orange wall inside it and see-through blue water behind it

See-through shapes are drawn after the solid ones, the farthest triangle first. Where two of them pass through each other, the one that’s drawn in front can be the wrong one; shapes that are beside or inside each other are fine.

When a scene is drawn

Without redraw:, the block runs each time the window is drawn, and the picture is made again only when what the block said has changed. That’s right for most scenes.

When the block itself is slow (it builds a large mesh, say), give the scene redraw: a number: the block then runs again only when the number is different from last time, when the view’s size changes, or when the appearance switches between light and dark.

Scene3D(redraw: version) { s in … }

A scene is drawn by the graphics card into a picture, which the window then shows. Tens of thousands of triangles are fine; a scene that moves all the time costs more as the view gets larger.

What a scene doesn’t do

Shadows, textures (pictures on shapes), and loading models from files.
Telling which shape the mouse is on. .onPointer says where the mouse is in the view; working out what’s under it is up to the program.
Thicker lines: a line is always one pixel wide.
On a computer with no graphics card to use, a scene shows as an empty box.

Testing

In a headless run, tree shows what’s in a scene without drawing it: Scene3D (4 shapes, 1668 triangles, 3 lines, 3 labels). snapshot draws it.
